• Model:ZL-10
• Rated bucket capacity:0.6m³
• discharge height:2500mm
• dumping distance:700mm
• wheel base:1270mm
• steering angle:35°
• tyre size:12-16.5
• Model:ZL-10
• Rated bucket capacity:0.6m³
• discharge height:2500mm
• dumping distance:700mm
• wheel base:1270mm
• steering angle:35°
• tyre size:12-16.5
• Model:ZL-10
• Rated bucket capacity:0.6m³
• discharge height:2500mm
• dumping distance:700mm
• wheel base:1270mm
• steering angle:35°
• tyre size:12-16.5

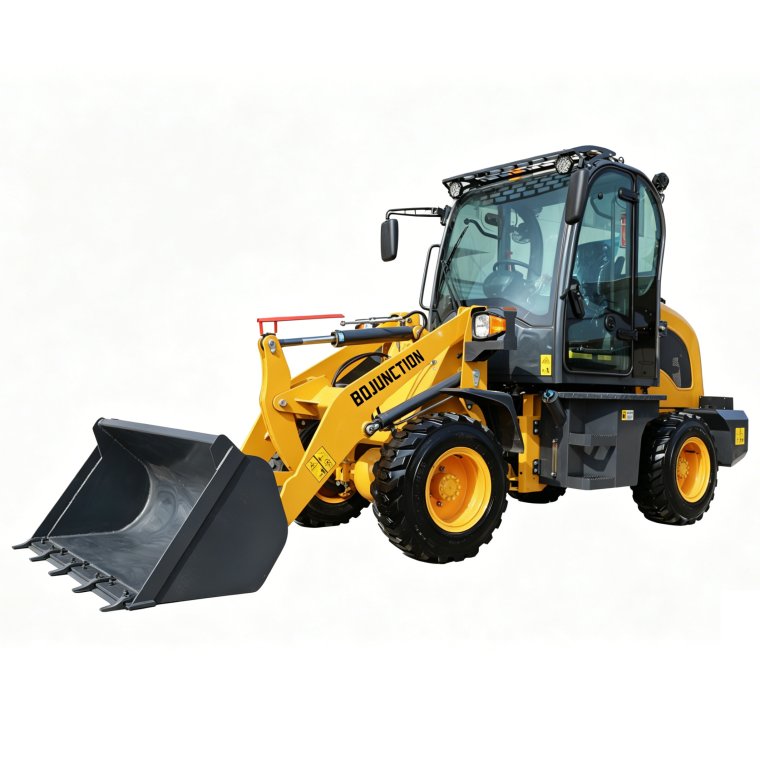

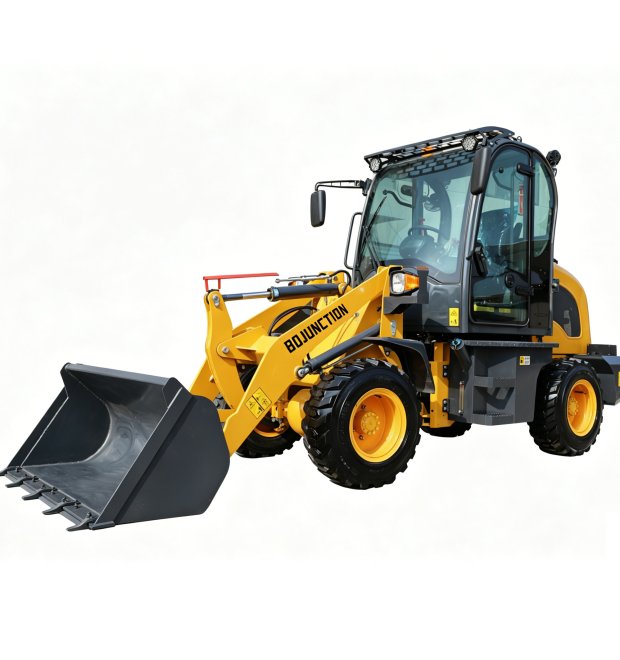

Bojun ZL-10 loader is designed for reliability and high performance. Its 1.2 ton loading capacity is supported by a sturdy steel frame, ensuring long-lasting durability. Powered by a world-renowned engine, it operates efficiently across diverse conditions. Its dual-hinge and dual-circuit hydraulic braking system ensures stable and safe handling, while the robust 12-16.5 rough-terrain tires provide superior traction on challenging surfaces. Easy to maneuver with dual steering cylinders and an intuitive single-lever control, it simplifies operation. Featuring zinc-plated bolts, electrophoretic-coated cab and hood, and advanced paint-before-assembly technology, it offers excellent corrosion resistance and a refined finish. Compatible with various forklift attachments, the ZL-10 adapts to a wide range of material handling tasks with strength and versatility.
| Specification | Unit | |
| Rated bucket capacity | 0.6 | m³ |
| Rated load capacity | 1200 | kg |
| Dumping height | 2500 | mm |
| Unloading distance | 700 | mm |
| Maximum driving speed | 30 | km/h |
| Maximum gradeability | 35 | ° |
| Steering angle | 230 | ° |
| Minimum ground clearance | 230 | mm |
| wheelbase | 2100 | mm |
| Track width | 1270 | mm |
| Engine model | Changchai390Euro5 | / |
| Engine power | 27 | kw |
| Tire Size | 12-16.5 | / |
| External dimensions | 4692*1600*2480 | mm |
Semi-Open Service Hood
The durable semi-open hood provides quick, direct access to daily checkpoints like fluid levels and filters.
Its robust design protects core components from debris while significantly simplifying routine maintenance.
Engineered for efficient heat dissipation and built to withstand harsh jobsite conditions.
Multi-Function Digital Display
A high-resolution LED screen clearly shows real-time data on engine performance, fuel consumption, and diagnostics.
The intuitive interface allows easy monitoring of speed, load, and operational alerts to maximize efficiency.
Helps operators track service intervals and machine health, supporting proactive maintenance planning.
Advanced Suspension Operator Seat
The fully adjustable air-ride seat effectively absorbs vibration and shocks for all-day operator comfort.
Features integrated lumbar support and durable upholstery designed for long service life in tough environments.
Enhances focus and productivity by reducing fatigue during extended periods of operation.
Reinforced Heavy-Duty Tires
Specially constructed with deep, aggressive tread patterns and reinforced sidewalls for superior traction and puncture resistance.
Built to handle extreme loads and challenging terrain like rocky or uneven ground without compromising stability.
These durable tires contribute to lower total operating costs through extended service life and reduced downtime.
Integrated Safety & Lighting Package
The cabin includes essential emergency equipment like a fire extinguisher and safety hammer for immediate response.
Powerful LED work lights with protective guards ensure excellent visibility for safe operation in low-light conditions.
This comprehensive package prioritizes operator safety and preparedness for various jobsite scenarios.
