• Model:FRT35
• Brand:BOCHA
• Rated Load Capacity:3500kg
• Lifting Height:3000mm
• Load Center:500mm
• Engine Model:WEIFANG4108
• Engine Power:42kw
• Min. Ground Clearance:230mm
• Mast Tilt Angle (Front/Rear):6/12mm
• Max. Driving Speed (Load/Unload):18/20km/h
• Max. Gradeability (Load/Unload):18/20 °
• Fork Size 1070*45*120:mm
• Overall Size:3009*1700*2280mm
• Total Weight:5120kg
• Model:FRT35
• Brand:BOCHA
• Rated Load Capacity:3500kg
• Lifting Height:3000mm
• Load Center:500mm
• Engine Model:WEIFANG4108
• Engine Power:42kw
• Min. Ground Clearance:230mm
• Mast Tilt Angle (Front/Rear):6/12mm
• Max. Driving Speed (Load/Unload):18/20km/h
• Max. Gradeability (Load/Unload):18/20 °
• Fork Size 1070*45*120:mm
• Overall Size:3009*1700*2280mm
• Total Weight:5120kg

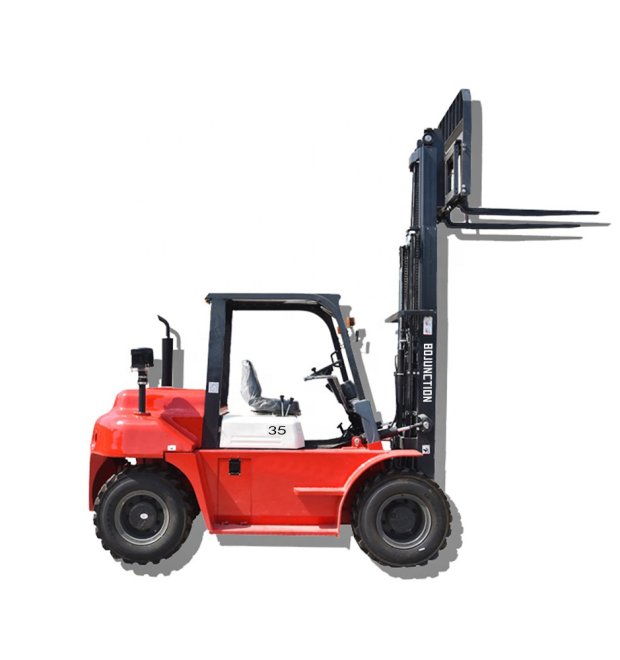

Bojun all terrain 4-wheel-drive counterbalance forklifts feature a superior integrated frame design with one-piece counterweight construction that delivers perfect balance and maximum stability on steep slopes. The premium cast iron counterweight provides denser material for improved lifting capacity and better weight distribution to prevent rear tipping, making it ideal for challenging environments including ports, terminals, lumber yards, steel yards, forestry, mining operations, and agricultural applications such as hay bale handling.
Engineered with enhanced gradeability, these off-road models maintain optimal traction on gradients exceeding 30%, with precise load control and excellent stability for maximum height lifting even in sandy conditions and muddy and rocky conditions. The heavy-duty component system includes reinforced axles for extreme loads, premium sealing technology, and professional-grade components to support continuous operation in metal fabrication, logistics, warehouse, recycling, and scrap yard applications.
Powered by brand engines meeting Euro V and EPA standards and equipped with durable pneumatic tires, these new forklift trucks are available for rent, resell, whole sale, and auction – representing the ultimate choice for demanding terrain and heavy loads where stability is critical.
| Specification | Unit | |
| Model | FRT35 | |
| Brand | BOCHA | / |
| Rated Load Capacity | 3500 | kg |
| Lifting Height | 3000 | mm |
| Load Center | 500 | mm |
| Engine Model | WEIFANG4108 | / |
| Engine Power | 42 | kw |
| Min. Ground Clearance | 230 | mm |
| Mast Tilt Angle (Front/Rear) | 6/12 | mm |
| Max. Driving Speed (Load/Unload) | 18/20 | km/h |
| Max. Gradeability (Load/Unload) | 18/20 | ° |
| Fork Size | 1070*45*120 | mm |
| Overall Size | 3009*1700*2280 | mm |
| Total Weight | 5120 | kg |
| Customized Service | Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. | |
Energy Efficient Engine
Top brand engine options (Cummins, Quanchai, Yunnei) compliant with Euro V or EPA emission standards.
Heavy-duty operations that combine powerful performance with environmental compliance.
Equipped with cushion blocking, it effectively reduces noise, extends the engine service lift, and meets the requirements for efficient operation.
Durable Mast
Bojun forklift mast is self-made, we use high-quality oil cylinders and strictly control the quality.
The widened and thickened mast enhances the structural stability, while the concealed piping layout maximizes the visibility and safety for the operators.
Integrated upper/lower cushioning enables smooth, shock-free lifting
Speed Switching Function
Standard high/low speed switching function, easy to operate and can meet different working conditions.
Switch to high gear position, with a maximum speed of 35 km/h, to enhance work efficiency.
Switch to low gear position to enhance the ability to escape and meet the requirements for operations in complex terrains.
Flexible Customization
Customized engines, lifting height, tires, forks and attachments, etc., to meet customers’ requirements.
7x24-hour online communication to customize your needs, one-stop service.
Accept OEM and ODM orders.
Model:FRTA35T Brand:BOCHA Rated Load Capacity:3500kg Lifting Height:3000mm Load Center:500mm Engine Model:QUANCHAI490 Engine Power:42kw Min. Ground Clearance:276mm
Model:FRTA35SS Brand:BOCHA Rated Load Capacity:3500kg Lifting Height:3000mm Load Center:500mm Engine Model:QUANCHAI490 Engine Power:42kw Min. Ground Clearance:254mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30° Fork Size:1220*45*120mm Overall Size:3550*1764*2145mm Total Weight:4200kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
Model:FRTA25S Brand:BOCHA Rated Load Capacity:2500kg Lifting Height:3000mm Load Center:500mm Engine Model:QUANCHAI490 Engine Power:37/42kw Min. Ground Clearance:200mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30° Fork Size:1070*40*100mm Overall Size:3650*1570*2220mm Total Weight:3050kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
Model:FRTA35SSS Brand:BOJUNCTION Rated Load Capacity:3500kg Lifting Height:3000mm Load Center:500mm Engine ModelQUANCHAI490 Engine Power:42kw Min. Ground Clearance:254mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30° Fork Size:1220*45*120mm Overall Size:3300*1800*2150mm Total Weight:4200kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
Model:FRTA35S Brand:BOJUNCTION Rated Load Capacity:3500kg Lifting Height:3000mm Load Center:500mm Engine Model:QUANCHAI490 Engine Power:42kw Min. Ground Clearance:276mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30° Fork Size:1220*45*120mm Overall Size:3670*1764*2265mm Total Weight:4200kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
Forklift Model:FRTA40S Brand:BOJUNCTION Forklift Size:3870*1764*2265mm Fork Size:1220*45*120mm Rated Load:4000kg Engine Model:SUPERCHARGED QUANCHAI 490 Engine Power:42(Optional)kw Load Center Distance:500mm Weight:4500kg Minimum Ground Clearance:340mm Mast Tilt Angle (Front/Rear):8 degree/10 degreedegree Max Driving Speed (Full load/Empty load) :30/35km/h Max Climbing Angle(Full load/Empty load):20/30degree Fork Standard Lifting Height:3000mm Customized Service:Configuration, Engine,Tire,Color,etc. Power: Diesel Oil
Model:FRTA50S Brand:BOJUNCTION Rated Load Capacity:5000kg Lifting Height:3000mm Load Center:500mm Engine Model:WEIFANG4102 Engine Power:76kw Min. Ground Clearance:349mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30° Fork Size:1220*50*150mm Overall Size:4435*2000*2596mm Total Weight:6470kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
Model:FRTA50SS Brand:BOJUNCTION Rated Load Capacity:5000kg Lifting Height:3000mm Load Center:500mm Engine Model:WEIFANG4102 Engine Power:76kw Min. Ground Clearance:349mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30 ° Fork Size:1220*50*150mm Overall Size:4360*1950*2434mm Total Weight:6450kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
Model:FRTA70S Brand:BOJUNCTION Rated Load Capacity:7000kg Lifting Height:3000mm Load Center:500mm Engine Model:WEIFANG4108 Engine Power:92kw Min. Ground Clearance:356mm Mast Tilt Angle (Front/Rear):8/10mm Max. Driving Speed (Load/Unload):30/35km/h Max. Gradeability (Load/Unload):20/30 ° Fork Size:1220*50*150mm Overall Size:5030*2190*2810mm Total Weight:8200kg Customized Service:Color, Engine, Tires, Mast, Lifting Height, Fork, Attachments etc. Power: Diesel Oil
