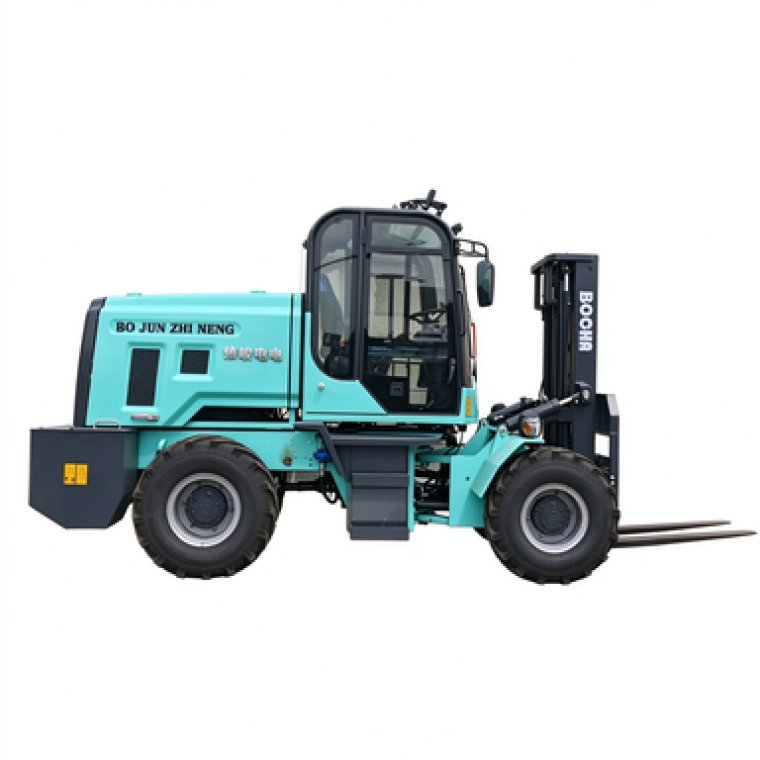

Electric Rough Terrain Forklift

BOJUN Electric Rough Terrain Forklift | Product Advantages

BOJUN electric rough terrain forklift combines powerful 4WD off-road performance and eco-friendly lithium power. It is designed for tough working sites such as construction farms, mines, open yards, muddy, gravel and sloped terrain.

Rugged 4WD Chassis & Excellent All-Terrain MobilityFull-time 4-wheel drive design with high ground clearance and deep-tread off-road tires. It performs well on mud, ruts and slopes without slipping or getting stuck. Optional rear-wheel steering reduces turning radius for tight-space operation. Reinforced chassis and thickened mast keep stable under heavy load.

LFP Lithium Battery, Low Maintenance & Energy SavingEquipped with lithium iron phosphate battery, safe and long cycle life, stable performance at low temperature. Fast charging, zero emission and low noise, suitable for both indoor and outdoor use. Imported INMOTION controller enables smooth power output and remote vehicle diagnosis.

Premium Hydraulic Components for Stable HandlingJapan Shimadzu hydraulic gear pump, stable oil supply and low noise; Zhenjiang planetary steering unit for light & flexible steering. Italy Bolzoni forks with strong load capacity. Imported oil seals prevent hydraulic leakage in heavy-duty jobs.

Ergonomic & Safety-oriented Design3-way oil-assisted disc brake for reliable stopping. Full digital dashboard for real-time machine data. Ergonomic suspension seat and full-view overhead guard. IP-rated electric system against dust and water for outdoor harsh conditions.

Factory Warranty & Global After-sales SupportDirect factory supply, custom mast height & attachments available. Comprehensive vehicle warranty plus special warranty for electric systems. 7×24h technical support and steady spare parts supply.

ApplicationConstruction sites, farms, forestry, gravel yards, municipal & solar projects, outdoor material handling.

BOJUN Electric Rough Terrain Forklift | Product Advantages

Rugged 4WD Chassis & Excellent All-Terrain MobilityFull-time 4-wheel drive design with high ground clearance and deep-tread off-road tires. It performs well on mud, ruts and slopes without slipping or getting stuck. Optional rear-wheel steering reduces turning radius for tight-space operation. Reinforced chassis and thickened mast keep stable under heavy load.
LFP Lithium Battery, Low Maintenance & Energy SavingEquipped with lithium iron phosphate battery, safe and long cycle life, stable performance at low temperature. Fast charging, zero emission and low noise, suitable for both indoor and outdoor use. Imported INMOTION controller enables smooth power output and remote vehicle diagnosis.
Premium Hydraulic Components for Stable HandlingJapan Shimadzu hydraulic gear pump, stable oil supply and low noise; Zhenjiang planetary steering unit for light & flexible steering. Italy Bolzoni forks with strong load capacity. Imported oil seals prevent hydraulic leakage in heavy-duty jobs.
Ergonomic & Safety-oriented Design3-way oil-assisted disc brake for reliable stopping. Full digital dashboard for real-time machine data. Ergonomic suspension seat and full-view overhead guard. IP-rated electric system against dust and water for outdoor harsh conditions.
Factory Warranty & Global After-sales SupportDirect factory supply, custom mast height & attachments available. Comprehensive vehicle warranty plus special warranty for electric systems. 7×24h technical support and steady spare parts supply.
ApplicationConstruction sites, farms, forestry, gravel yards, municipal & solar projects, outdoor material handling.

Consult Now

parameter	unit	specification
Rated Load	kg	3500 (3.5T)
Load Center Distance	mm	500
Max. Fork Lifting Height (With Load Backrest)	mm	4055
Max. Lift Height	mm	3000
Full Mast Height (Forks on ground, mast vertical)	mm	2200
Free Lift Height	mm	100
Load Backrest Height (Measured from mast fork face)	mm	1055
Distance from Seat Surface to Overhead Guard	mm	930
Front Overhang	mm	560
Rear Overhang	mm	1130
Wheelbase	mm	2300
Drawbar Pin Height	mm	273
Min. Ground Clearance (At Mast)	mm	256
Outer Fork Spread (Max./Min.)	mm	1100/240
Track Width (Front/Rear Wheel)	mm	1495/1480
Outside Min. Turning Radius	mm	4900
Inside Min. Turning Radius	mm	2850
Mast Tilt Angle (Forward/Backward)	°	Forward 8° / Backward 10°
Fork Dimension	mm	122045122
Max. Travel Speed (Full Load / No Load)	km/h	25/30
Max. Gradeability (Full Load / No Load)	%	25/30（注：原表单位 km/h 为笔误，爬坡能力单位应为 %）
Wheel Quantity / Drive Wheels	/	4X4
Tire Type (Front/Rear)	/	Pneumatic Tire
Front Tire Spec.	/	23.5/70-16
Rear Tire Spec.	/	23.5/70-16
Service Brake	/	Hydraulic Disc Brake
Parking Brake	/	Mechanical Hand Brake
Controller	V/A	153.6/135
Traction Motor	kw	35
Hydraulic Pump Motor	kw	25
Battery Capacity	V/Ah	144/280
Battery Power	kWh	42
Dimension (LWH - Without Forks)	mm	394018002550
Gross Weight	kg	4276

parameter

unit

specification

Rated Load

3500 (3.5T)

Load Center Distance

500

Max. Fork Lifting Height (With Load Backrest)

4055

Max. Lift Height

3000

Full Mast Height (Forks on ground, mast vertical)

2200

Free Lift Height

100

Load Backrest Height (Measured from mast fork face)

1055

Distance from Seat Surface to Overhead Guard

930

Front Overhang

560

Rear Overhang

1130

Wheelbase

2300

Drawbar Pin Height

273

Min. Ground Clearance (At Mast)

256

Outer Fork Spread (Max./Min.)

1100/240

Track Width (Front/Rear Wheel)

1495/1480

Outside Min. Turning Radius

4900

Inside Min. Turning Radius

2850

Mast Tilt Angle (Forward/Backward)

Forward 8° / Backward 10°

Fork Dimension

122045122

Max. Travel Speed (Full Load / No Load)

km/h

25/30

Max. Gradeability (Full Load / No Load)

25/30（注：原表单位 km/h 为笔误，爬坡能力单位应为 %）

Wheel Quantity / Drive Wheels

4X4

Tire Type (Front/Rear)

Pneumatic Tire

Front Tire Spec.

23.5/70-16

Rear Tire Spec.

23.5/70-16

Service Brake

Hydraulic Disc Brake

Parking Brake

Mechanical Hand Brake

Controller

V/A

153.6/135

Traction Motor

Hydraulic Pump Motor

Battery Capacity

V/Ah

144/280

Battery Power

kWh

Dimension (LWH - Without Forks)

394018002550

Gross Weight

4276
