FRTA35SS

Banner
Powwer: Diesel Oil

FRTA35SS

Details Chart
Details Chart
Details Chart
Product Description:

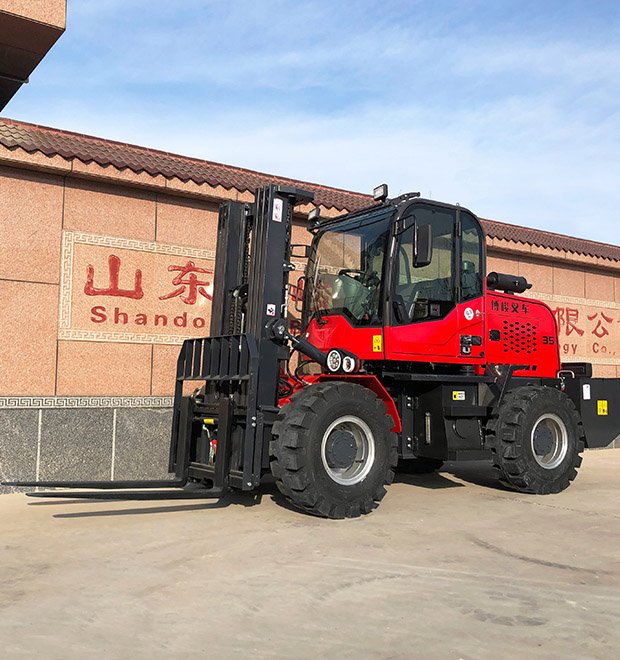

3.5 Ton Rough Terrain Forklift - Standard Type

- Superior Lifting System: Wide-view mast with hidden hoses for optimal visibility. Customizable mast heights for specific needs. Japanese NOK seals ensure 200,000 lift cycles without leakage(10 times longer than normal).

- Enhanced Durability & Safety: Reinforced chassis and axles. Premium chains with 5x strength rating. Independent side rollers reduce sway and improve stability.

- Exceptional Terrain Performance: Short designd body for crowded spaces. Specialized tires with reinforced layers. Robust articulation point withstands heavy loads.

- Reliable Power & Control: Quality engines meet various emission standards. Efficient torque converter ensures smooth operation. Comfortable cabin with excellent visibility.

High ground clearance ,4WD and reinforced tires, equipped with dual high-speed grars, can reachs a top speed of 35km/h.


Consult Now

Specifications :

ParameterParameter ValueUnit
Forklift ModelFRTA35SS/
BrandBOJUNCTION/
Forklift Size3550*1764*2145mm
Fork Size1220*45*120mm
Rated Load3500kg
Engine Model

QUANCHAI 490

/
Engine Power42(Optional)kw
Load Center Distance500mm
Weight4200kg
Minimum Ground Clearance254mm
Mast Tilt Angle (Front/Rear)8 degree/10 degreedegree
Max Driving Speed (Full load/Empty load)30/35km/h
Max Climbing Angle(Full load/Empty load)20/30degree
Fork Standard Lifting Height3000mm
Customized ServiceConfiguration, Engine,Tire,Color,etc.


Rough Terrain Forklift Advantage :

Forklift Gantry

*Widened and thickened gantry,stronger and more reliable overall structure.

*Hidden pipeline layout provides a wide-open view.

*Equipped with upper and lower cushioning, more smoother and safe during work.

Diesel Engine

Use China Top Brand Diesel Engine: Quanchai etc.

High-speed Grars

Equipped with dual high-speed grars, up to 35km/h (22miles/h).

It is especially suitable for outdoor work.

Customized service

Accept customized service from engine,gearbox, configuration,tires,etc.

Modular production line with QC checkpoint at each stage.

Ultra-short Design

The ultra-short frame design significantly reduces the turning radius, making it ideal to work in crowded environments.

Customer Factory Inspection :

Pre factory inspection
Welding Robot
Laser Cutting Machine
Laser Cutting Machine
