Product Description:

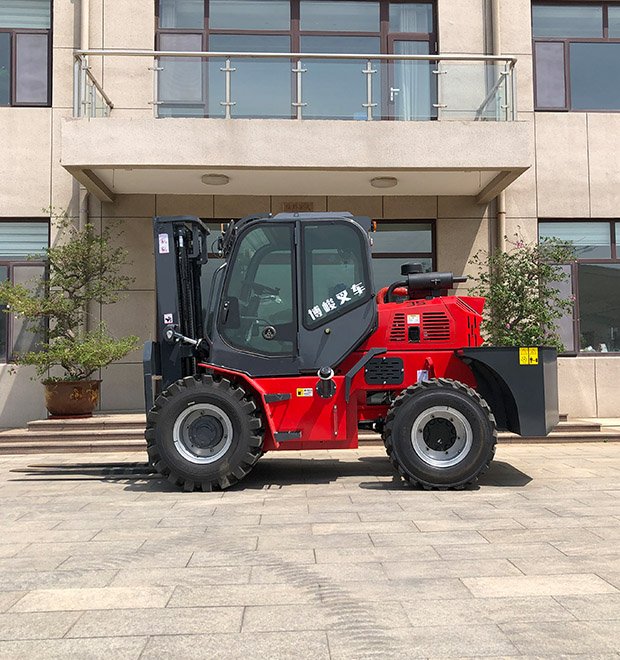

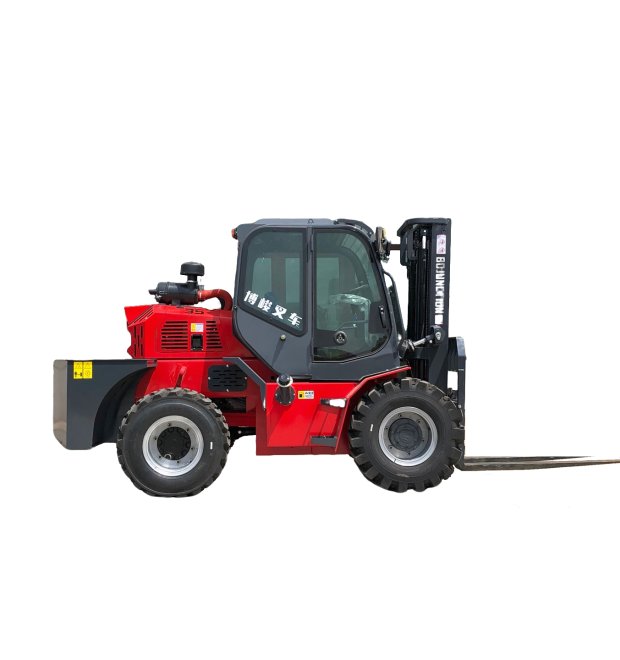

3.5 Ton Rough Terrain Forklift - Standard Type

- Superior Lifting System: Wide-view mast with hidden hoses for optimal visibility. Customizable mast heights for specific needs. Japanese NOK seals ensure 200,000 lift cycles without leakage(10 times longer than normal).

- Enhanced Durability & Safety: Reinforced chassis and axles. Premium chains with 5x strength rating. Independent side rollers reduce sway and improve stability.

- Exceptional Terrain Performance: Short designd body for crowded spaces. Specialized tires with reinforced layers. Robust articulation point withstands heavy loads.

- Reliable Power & Control: Quality engines meet various emission standards. Efficient torque converter ensures smooth operation. Comfortable cabin with excellent visibility.

- High ground clearance ,4WD and reinforced tires, equipped with dual high-speed grars, can reachs a top speed of 35km/h.


Consult Now

Specifications :

ParameterParameter ValueUnit
Forklift ModelFRTA35T/
BrandBOJUNCTION/
Forklift Size3300*1800*2150mm
Fork Size1220*45*120mm
Rated Load3500kg
Engine Model

QUANCHAI 490

/
Engine Power42(Optional)kw
Load Center Distance500mm
Weight4450kg
Minimum Ground Clearance276mm
Mast Tilt Angle (Front/Rear)8 degree/10 degreedegree
Max Driving Speed (Full load/Empty load)30/35km/h
Max Climbing Angle(Full load/Empty load)20/30degree
Fork Standard Lifting Height3000mm
Customized ServiceConfiguration, Engine,Tire,Color,etc.


Rough Terrain Forklift Advantage :

Forklift Gantry

*Widened and thickened gantry,stronger and more reliable overall structure.

*Hidden pipeline layout provides a wide-open view.

*Equipped with upper and lower cushioning, more smoother and safe during work.

Diesel Engine

Use China Top Brand Diesel Engine: Quanchai etc.

High-speed Grars

Equipped with dual high-speed grars, up to 35km/h (22miles/h).

It is especially suitable for outdoor work.

Customized service

Accept customized service from engine,gearbox, configuration,tires,etc.

Modular production line with QC checkpoint at each stage.

Ultra-short Design

Our latest model, the 7th generation, with extreme shortest integral body 3.3m only, (ordinary rough terrain forklift is about 4.0 meters). making it more flexible in the narrow space. Full size: 3.3*1.8*2.15m.the unique design owns several national patents.
