Product Description:

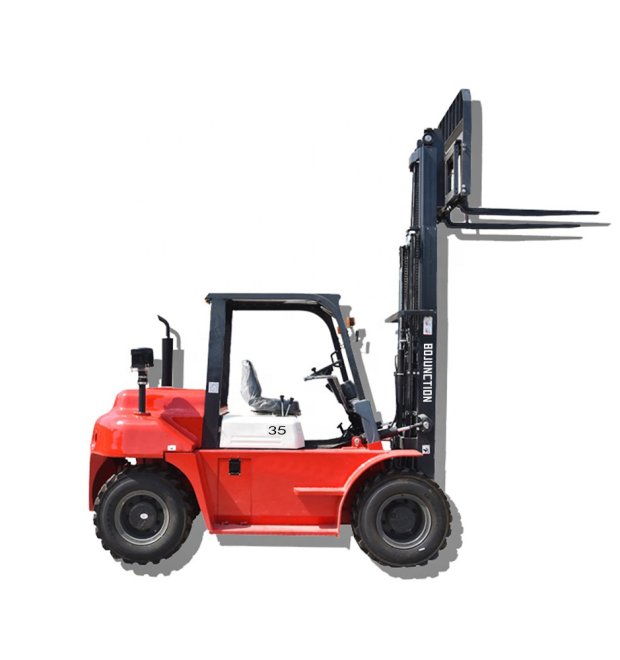

3.5 Ton Rough Terrain Forklift - Premium Type

1. Superior Integrated Frame Design: One-piece counterweight construction provides perfect balance. Rigid frame ensures maximum stability on steep slopes. Enhanced structural integrity for heavy-duty operations.

2. Premium Cast Iron Counterweight:High ground clearance ,4WD and reinforced tires.

3. Enhanced Gradeability & Control: Maintains optimal traction on 30%+ gradients. Integrated design delivers precise load control. Excellent stability for maximum height lifting.

4. Heavy-Duty Component System:Reinforced axles support extreme loads. Premium sealing technology throughout. Professional-grade components for continuous operation.

The ultimate choice for demanding terrain and heavy loads where stability is critical.


Consult Now

Specifications :

ParameterParameter ValueUnit
Forklift ModelFRT35/
BrandBOJUNCTION/
Forklift Size

3009*1700*2280

mm
Fork Size

1070*45*120

mm
Rated Load3500kg
Engine Model

QUANCHAI 495

/
Engine Power42(Optional)kw
Load Center Distance500mm
Weight5120kg
Minimum Ground Clearance230mm
Mast Tilt Angle (Front/Rear)6 degree/12 degreedegree
Max Driving Speed (Full load/Empty load)18/20km/h
Max Climbing Angle(Full load/Empty load)18/20degree
Fork Standard Lifting Height3000mm
Customized ServiceConfiguration, Engine,Tire,Color,etc.


Rough Terrain Forklift Advantage :

Forklift Gantry

*Widened and thickened gantry,stronger and more reliable overall structure.

*Hidden pipeline layout provides a wide-open view.

*Equipped with upper and lower cushioning, more smoother and safe during work.

Diesel Engine

Use China Top Brand Diesel Engine: Quanchai etc.

High-speed Grars

Equipped with dual high-speed grars, up to 35km/h (22miles/h).

It is especially suitable for outdoor work.

Customized service

Accept customized service from engine,gearbox, configuration,tires,etc.

Modular production line with QC checkpoint at each stage.

Ultra-short Design

The ultra-short frame design significantly reduces the turning radius, making it ideal to work in crowded environments.

Customer Factory Inspection :

Product Installation
Material spraying
polishing
Laser Cutting Machine
Laser Cutting Machine
Pre factory inspection
