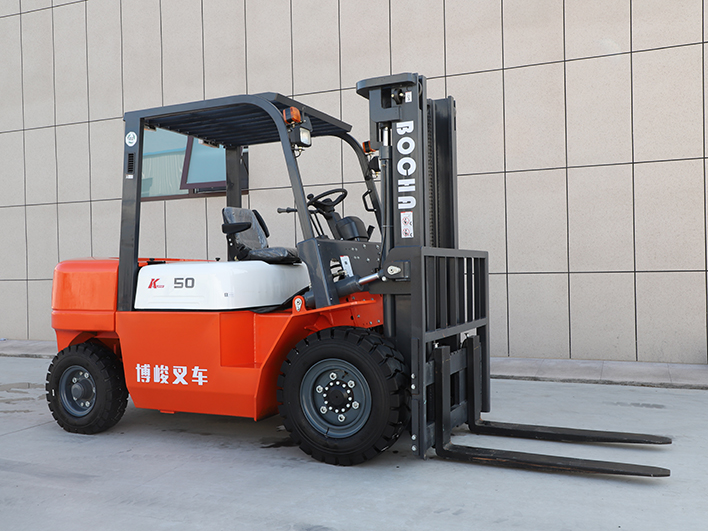

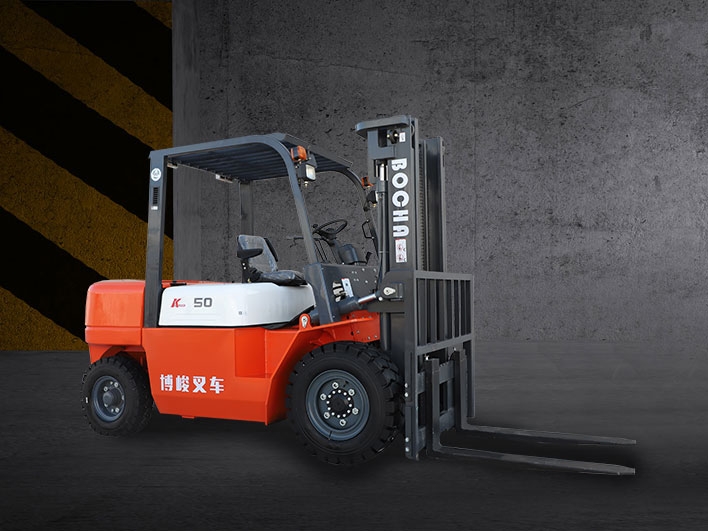

| Four wheel fork lift |
|
| Item | Unit | 5T |
| Rated capacity (Load capacity) | kg | 5000 |
| Lift height) | mm | 3000 |
| Load centre distance (Load centre) | mm | 500 |
| Door trame angle | degree | 6-12° |
| Gradient (Gradient) full load/no load | % | 15/20 |
| Dimensions (L(Length) without fork | mm | 3280 |
| Width | mm | 1500 |
| Maximum height during operation (Height) | mm | 4275 |
| Free lift height | mm | 150 |
| Overhead guard height | mm | 2300 |
| The goods fork length | mm | 1220 |
| Furcation length | mm | 1200 |
| Front tire | | 300-15 |
| Rear tire | | 7.00-12 |
| Wheel base | mm | 2100 |
| Front gauge | mm | 1190 |
| Track rear | mm | 1050 |
| Ground clearance (groubd clearance under mast) | mm | 215 |
| Front overhang | mm | 580 |
| Overhang | | 535 |
| Net weight | ton | 6800 |
| Accumulator | V/Ah | 24/80 |
| engine model | | 4D35ZG31 |
| Engine power | KW | 61 |
