| Parameter Name | Parameter Value | Unit |

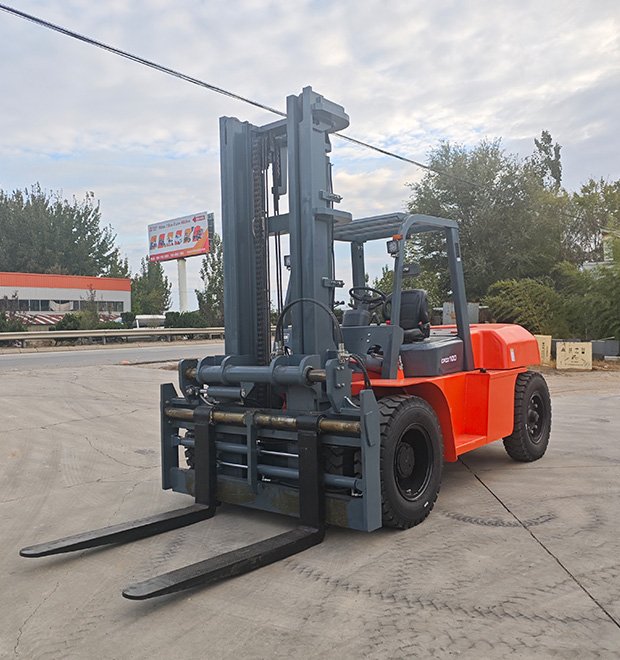

| Forklift Model | FD100 | / |
| Brand | BOJUNCTION | / |
| Forklift Size | 4270*2165*2560 | mm |
| Fork Size | 1220*80*150 | mm |
| Rated Load | 10000 | kg |
| Weight | 12860 | kg |
| Engine Model | Diesel | / |
| Engine Power | 85(Optional) | kw |
| Max Driving Speed (Full load/Empty load) | 18/20 | km/h |
| Max Climbing Angle(Full load/Empty load) | 22/24 | degree |
| Fork Standard Lifting Height | 3000 | mm |
| Customized Service | Configuration, Engine,Tire, Color,etc. | |
Diesel Engine
Many top engine brands option: Kubota, Yanmar, Cummins, etc.
Drive Axle
The core components such as gearbox and drive axle are all China famous brand,
Forklift Gantry
*Widened and thickened gantry,stronger and more reliable overall structure.
*Hidden pipeline layout provides a wide-open view.
*Equipped with upper and lower cushioning, more smoother and safe during work.
Dashboard
The large screen displays various operating parameters such as oil volume,speed.
Modular Production and Customized service
Accept customized service from engine,gearbox,tires,etc.
modular production line with QC checkpoint at each stage.
