| Parameter Name | Parameter Value | Unit |

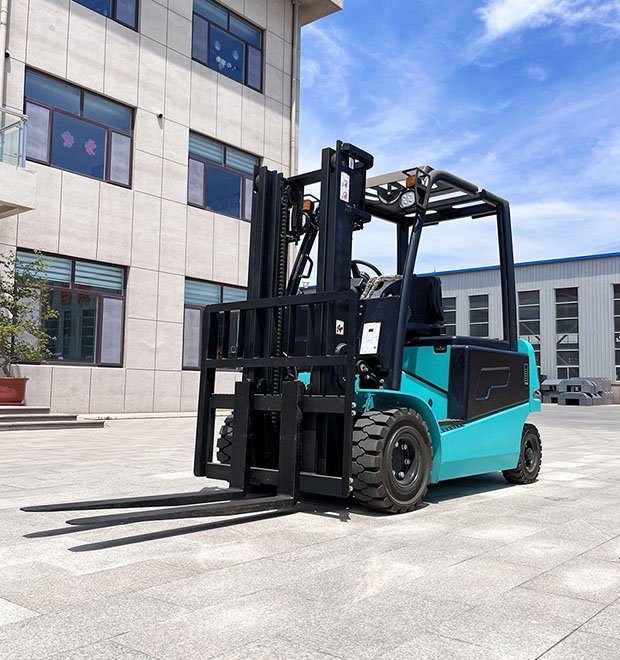

| Forklift Model | FBL35 | / |
| Brand | BOJUNCTION | / |
| Forklift Size | 2654*1268*2118 | mm |
| Rated Load | 3500 | kg |
| Weight | 4790 | kg |
| Power | Lithium battery | / |
| Battery (Voltage/Capacity) | 76.8V 280Ah | v/Ah |
| Battery Brand | YIJIATONG | / |
| Walking Motor | 13.5/80 | kw/v |
| Oil pump Motor | 16.6/80 | kw/v |
| Controller | FANG JI | / |
| Fork Standard Lifting Height | 3000 | mm |
| Customized Service | Configuration, Engine,Tire,Color,etc. | |
“YIJIATONG”Well known lithium battery brand
It provides fast charge and long-last working.
*2-hour quick charge →8-12 hour continuous operation.
*3500 times charge cycles with above 80% capacity retention.
*10-year service life, 8-year super long warranty.
“FANJI”Intelligent Controller
*Remote diagnostics: enables real-time fault detection and system analysis via backend.
*Cloud-based monitoring: access vehicle status and operational date anytime and anywhere
*Intelligent alert system: automatic error reporting with troubleshooting suggestions.
“DEPUDA” Travel and Lift Motor
Superior performance and stable operation.
Forklift Gantry
*Widened and thickened gantry,stronger and more reliable overall structure.
*Hidden pipeline layout provides a wide-open view.
*Equipped with upper and lower cushioning, more smoother and safe during work.
Modular assembly line
Assembly line production with QC checkpoint at each stage.
